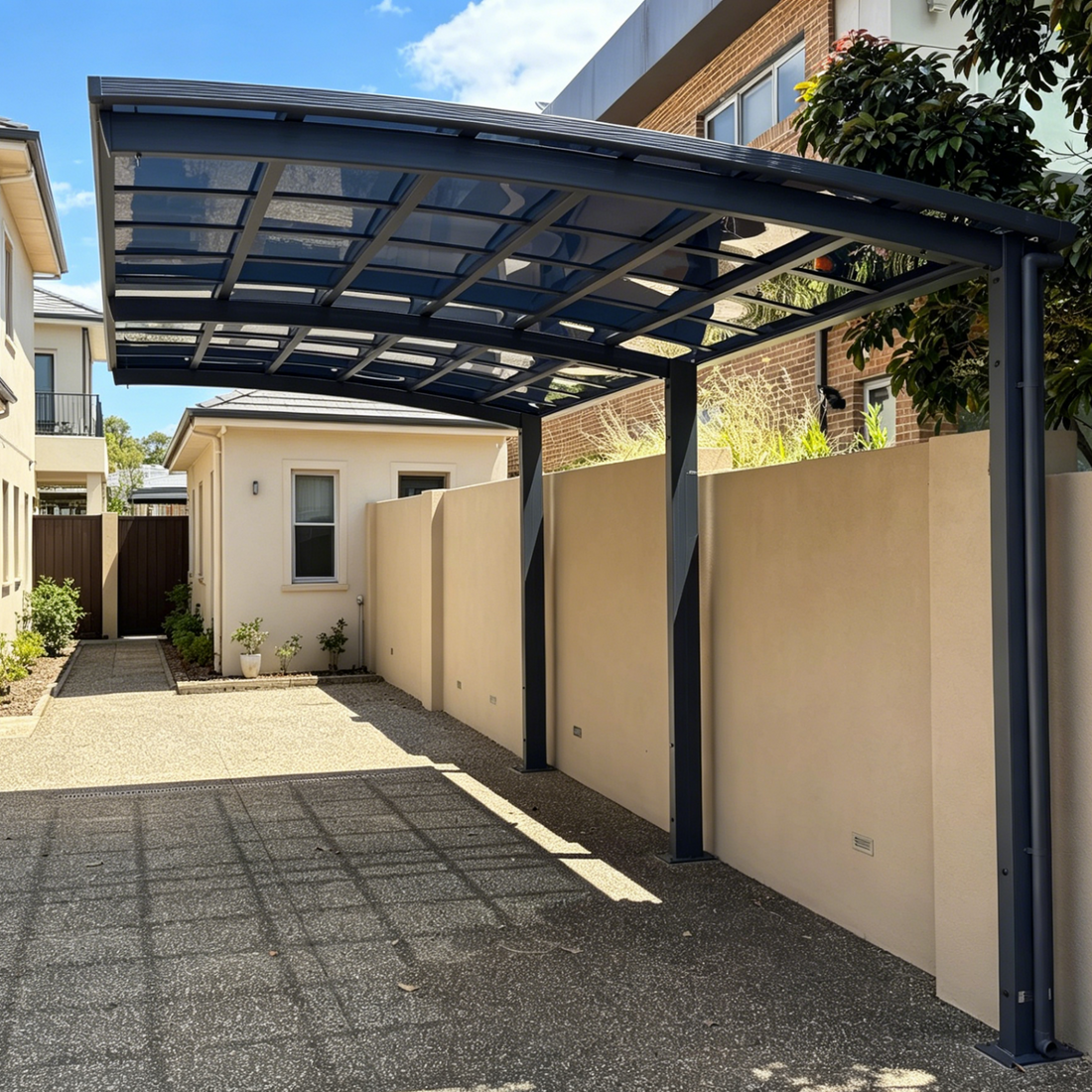

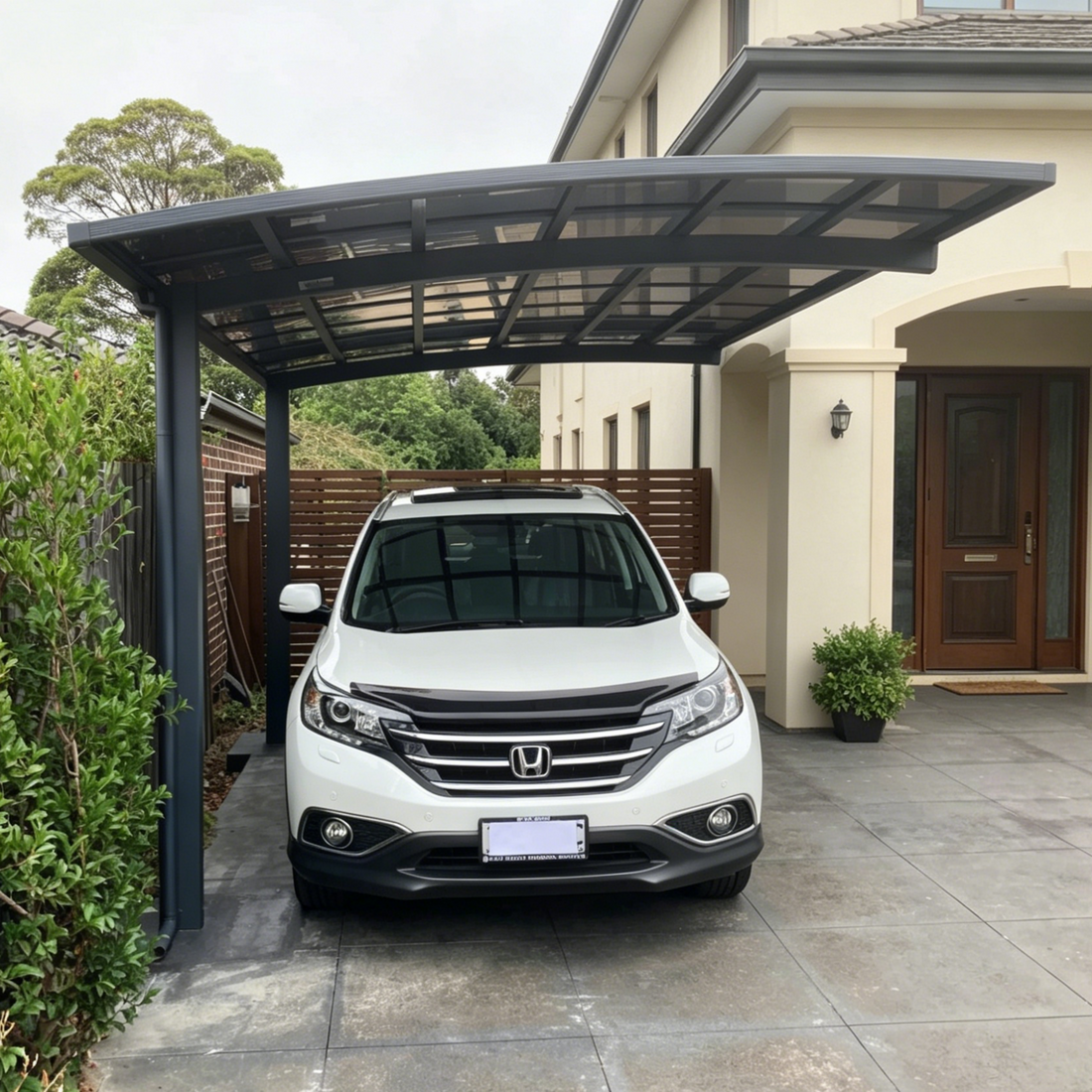

Cantilever carports have surged in popularity across Australian residential and commercial architectural designs. Characterised by their sleek, unobstructed overhead structures supported by columns on only one side, they offer unparalleled spatial efficiency and modern aesthetics. However, because a cantilever design inherently creates a massive leverage effect (bending moment) at the base, the engineering of the vertical support columns is paramount.
When specifying these structures, designers, builders, and certifiers face a critical technical question: Should cantilever carport columns be surface-mounted to a concrete slab, or cast directly into deep ground footings?
For the Australian market—governed by strict National Construction Code (NCC) requirements and unique soil profiles—the answer depends on structural engineering principles, wind classifications, and site conditions.
1. In-Ground Installations (Cast-In-Situ Footings)
The Engineered Standard for High-Load Resistance
For the vast majority of cantilever carports in Australia, in-ground installation is the industry-standard and engineering-preferred method. ### How It Works
The steel columns are extended below the finished ground level and cast directly into a deep concrete pier footing (bored pier). Alternatively, a heavy stub-column or cage anchor is cast into the footing, and the main column is spliced above ground.
Why It Is Preferred in Australia
-
Managing the Bending Moment: A cantilever carport acts like a giant sail. Wind uplift and dead loads create a severe rotational force at the base. In-ground footings use the surrounding undisturbed soil mass to resist this overturning moment.
-
Compliance with AS/NZS 1170.2 (Wind Actions): Australia is divided into distinct wind regions (from Region A up to cyclonic Region D). In-ground piers provide the necessary depth and mass to achieve certification in high-wind zones or open terrain (Terrain Category 2).
-
Mitigating Soil Movement: Australian soils, particularly reactive clay (Class M, H1, H2, or E slabs), expand and contract drastically. Deep in-ground piers anchor the structure below the active soil zone, preventing structural shifting.
Engineering Note: Typical in-ground footings for a standard double-car cantilever carport range from 800 mm to 1500 mm in depth, and 450 mm to 600 mm in diameter, depending on soil classification and wind rating.
2. Ground-Mounted / Surface-Mounted Installations (Base Plate Fixings)
The Specialized Exception
Surface mounting involves welding a thick, heavy-duty steel base plate to the bottom of the column and anchoring it directly onto an existing or newly poured concrete slab using high-tensile chemical anchors (e.g., Ramset or Hilti systems) or mechanical masonry bolts.
When Is It Feasible?
While highly convenient, standard driveway slabs (typically 100 mm thick with SL72 mesh) are entirely inadequate for surface-mounting a cantilever carport. It can only be done under specific conditions:
-
Integrated Monolithic Slabs: The slab must be structurally engineered specifically for the carport, featuring a heavily reinforced, deepened perimeter beam or localized thickened pad footings directly beneath the column locations.
-
Low Wind Zones: More common in highly shielded suburban areas (Wind Classification N1 or N2).
-
Commercial Applications: Where columns are fixed to engineered retaining walls or deep suspended concrete decks designed by a structural engineer.
The Risks
Fixing a cantilever to a standard residential slab creates a high risk of "concrete cone failure," where the immense upward leverage of the carport literally rips a chunk of the concrete slab out of the ground.
Comparative Matrix: In-Ground vs. Surface-Mounted
| Engineering Metric | In-Ground Installation (Preferred) | Ground/Surface Mounted (Exceptional) |
| Structural Integrity | Superior. Maximum resistance to overturning and wind uplift. | Conditional. Highly reliant on the thickness and reinforcement of the slab. |
| Wind Rating Suitability | Suitable for all regions (N1 up to Cyclonic C/D). | Generally restricted to low-wind residential (N1/N2) unless slabs are massively reinforced. |
| Aesthetic Cleanliness | High. Concrete footings are buried; finishes can go right up to the post. | Visible. Large steel base plates and anchor bolt heads are exposed at the base. |
| Installation Complexity | Requires heavy drilling machinery (auger) and bulk concrete pouring. | Faster installation if an adequate, engineered slab already exists. |
| Cost | Higher initial excavation and concrete volume costs. | Lower structural steel costs, but potentially higher concrete slab engineering costs. |
Australian Regulatory and Compliance Considerations
Before executing either installation method, documentation must satisfy local council and building certifier requirements:
-
AS 4100 (Steel Structures) & AS/NZS 4600 (Cold-Formed Steel): All structural steel columns and base plates must comply with Australian steel standards.
-
Soil Testing (AS 2870): A Geotechnical soil test is mandatory to determine the bearing capacity of the soil. Reactive clays require deeper in-ground footings than stable, sandy soils.
-
Form 15 / Engineering Certification: In states like Queensland and NSW, a Registered Professional Engineer of Queensland (RPEQ) or a Chartered Professional Engineer (CPEng) must review the site wind classification and formally certify the footing design before a building permit is issued.
For an authentic, durable, and legally compliant cantilever carport in Australia, an in-ground installation is overwhelmingly the safest and most structurally sound choice. It provides the robust anchorage required to withstand the harsh Australian climate and volatile wind loads.
Surface mounting should only be pursued if you are pouring a heavy, purpose-engineered slab designed explicitly by a structural engineer to counteract the unique rotational forces of a cantilevered system. Always consult a local structural engineer to assess your site's soil profile and wind classification before finalizing your foundation design.
