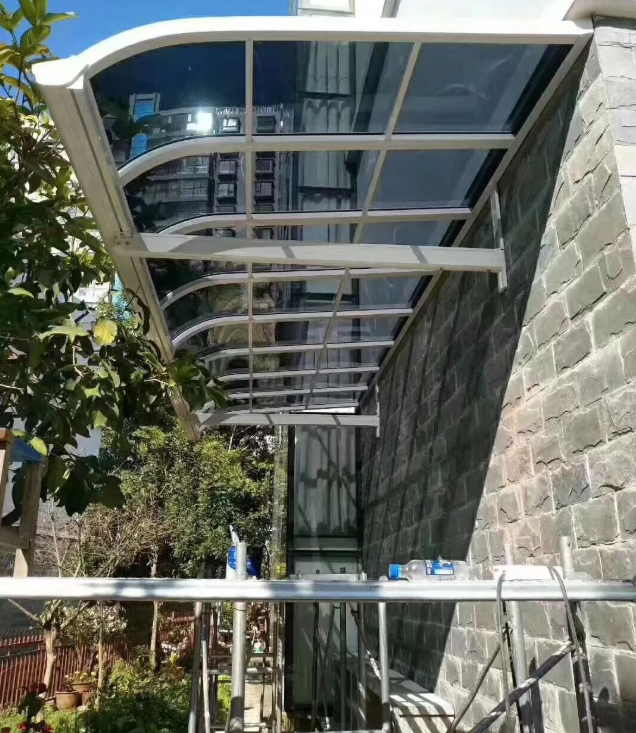

In the harsh environmental conditions of Australia—ranging from the intense UV radiation of Queensland to the high-velocity winds of the Victorian coast—selecting the right outdoor architectural solution is a matter of structural integrity, not just aesthetics.
The combination of 6063-T5 aluminum alloy frames and solid polycarbonate sheeting represents the current gold standard in modern awning engineering. This technical white paper explores why this specific material synergy is dominating the Australian residential and commercial markets.
1. Structural Framework: The Physics of 6063-T5 Aluminum
In Australia, architectural structures must adhere to AS 1170 (Structural Design Actions). The frame is the skeleton of the awning, and its ability to withstand "Dead Loads" (its own weight) and "Live Loads" (wind and rain) is paramount.
The Alloy Advantage
Most premium Australian awnings utilize 6063-T5 aluminum.
-
6063 Alloy: Known as the "architectural alloy," it provides a superior surface finish for powder coating.
-
T5 Tempering: This involves quenching the metal directly from the extrusion press and then artificially aging it. It results in a yield strength of approximately 145 MPa, providing the necessary rigidity without the brittleness of higher-tempers.
Corrosion Resistance in Coastal Zones
With a significant portion of the Australian population living within 50km of the coast, salt spray is a primary concern. Unlike steel, which requires heavy galvanization, aluminum forms a natural oxide layer that prevents deep-pitting corrosion. For maximum longevity, frames should be finished with Interpon or Dulux commercial-grade powder coating, compliant with AS 3715.
2. The Panel Technology: Why "Solid" Polycarbonate?
There is a common misconception that all polycarbonate is equal. In the technical sphere, we distinguish between Multi-wall (hollow) and Solid Polycarbonate.
Impact Resistance: The 250x Rule
Solid polycarbonate is virtually unbreakable. It possesses an impact strength approximately 250 times that of glass and 30 times that of acrylic. In regions prone to severe hailstorms, such as Sydney or Brisbane, solid panels (typically 3mm to 5mm thick) provide the only reliable protection against impact damage.
UV Stabilization and "Yellowing"
The Australian Sun is exceptionally high in UV-B radiation. Inferior plastics degrade and turn brittle within 24 months. Technical-grade solid polycarbonate features a co-extruded UV protection layer (usually on both sides). This layer filters out 99.9% of harmful UV rays, protecting both the inhabitants underneath and the structural integrity of the sheet itself.
3. Engineering for the Australian Environment
Wind Load and AS 4055 Compliance
In "Region C" (cyclone-prone) or high-wind areas, the connection between the frame and the building substrate is the most frequent point of failure.
-
Dynamic Loading: Awnings act as "wings" during high winds. Engineering designs must account for uplift forces.
-
Fasteners: We recommend the use of 316 Marine Grade Stainless Steel bolts and chemical anchors (such as Ramset or Hilti systems) when mounting to brick or concrete.
Thermal Expansion and Contraction
Polycarbonate has a different thermal expansion coefficient than aluminum. A 3-meter sheet can expand by several millimeters between a cold Melbourne night and a scorching afternoon.
-
Oversized Drilling: Professional installers must use oversized holes and specialized EPDM gaskets to allow the sheet to "float" within the frame.
-
Waterproofing: Utilizing neutral-cure silicone is mandatory; acetic-cure silicones will chemically attack the polycarbonate and cause stress cracking.
4. Thermal Performance and Light Transmission
A technical advantage of solid polycarbonate is its ability to balance natural light with heat reduction.
| Panel Color | Light Transmission | Heat Reduction (approx.) |
| Clear | 85-90% | 5% |
| Bronze / Tint | 35-50% | 40% |
| Grey / Smoked | 20-30% | 55% |
| Opal / White | 40-50% | 60% |
For North-facing Australian patios, a Grey Tint or Heat-Reflective solid sheet is often recommended to maintain visibility while significantly reducing the "Greenhouse Effect" under the awning.
5. Installation Best Practices: The Professional Edge
To ensure an awning lasts 20+ years in the Australian climate, specific installation protocols must be followed:
-
Pitch Gradient: A minimum pitch of 5 to 10 degrees is required. This ensures adequate water runoff and prevents the accumulation of debris that can cause "pooling" and subsequent structural sagging.
-
Guttering Integration: In heavy rain zones, integrating a front-edge gutter system that complies with AS/NZS 3500.3 (Stormwater Drainage) is essential to prevent localized flooding at the building foundation.
-
Flashing: Custom-folded aluminum flashing should be installed at the wall-to-frame junction to ensure a 100% watertight seal, preventing moisture ingress into the building's cavity.
6. Maintenance and Lifecycle Cost Analysis
While the initial capital expenditure for a solid polycarbonate and aluminum awning is higher than for fabric or hollow-wall alternatives, the Total Cost of Ownership (TCO) is lower.
-
Longevity: Aluminum frames effectively have an infinite lifespan if the coating is maintained. Solid polycarbonate typically carries a 10-year warranty against yellowing and loss of light transmission.
-
Maintenance: Maintenance is limited to a biannual wash with mild soapy water and a soft cloth. Unlike fabric awnings, there is no risk of mold, mildew, or tearing.
Conclusion: A Future-Proof Investment
For Australian homeowners and developers, the shift toward aluminum and solid polycarbonate isn't just a trend—it's a technical evolution. By combining the lightweight, rust-proof nature of 6063-T5 aluminum with the indestructible properties of UV-protected solid polycarbonate, these structures provide a high-performance solution that meets the rigorous demands of the National Construction Code (NCC).
Whether you are specifying for a residential terrace in Perth or a commercial storefront in Adelaide, prioritizing material grade and engineering compliance is the only way to ensure lasting value in the Great Australian Outdoors.
