In the residential construction sector, installing a carport is a highly practical way to add value to a property. However, from a structural engineering standpoint, a carport is an open building subjected to severe environmental forces—most notably wind uplift and, in certain regions, snow loads. Whether you are assembling pre-engineered Carport Kits or managing a custom commercial build, site conditions dictate your construction methodology. Relying on standard concrete anchors is often a recipe for structural failure.

1. Deep Ground Excavation & Concrete Pouring: The Foundation Standard

For standard soil profiles, many lightweight Carport Kits suggest using base plates dynabolted directly into an existing concrete slab. However, in professional construction—especially when dealing with soft geotech profiles (like sandy, clay-heavy, or loose topsoil)—this method is insufficient.

Why Excavation and In-Ground Burial Matter

· Extended Posts: In soft soil or high-wind zones, standard post lengths are inadequate. Builders must choose extended posts designed to bypass loose topsoil and anchor deep into stable subgrade.

· The Process: Ground excavation is required to dig individual footings (typically 600mm to 1200mm deep). The extended posts are dropped directly into these bored holes and secured via wet-pour concrete mass footing to handle wind uplift.

2. Specialized Structural Measures for Advanced Carport Designs

The Cantilever Carport: Extreme Footing Requirements

The Cantilever Carport acts as a massive lever arm. Surface-mounting a cantilever structure is a critical safety risk.

· Deep Ground In-Ground Burial: It must utilize deep ground excavation with columns deeply buried into high-strength concrete footings to counteract the immense overturning moments.

· High Wind & Snow Load Upgrades (Stay Braces): In geographic regions prone to cyclonic wind speeds or snow, adding diagonal stay braces or tension rods is an essential safety measure to prevent structural flexing or failure.

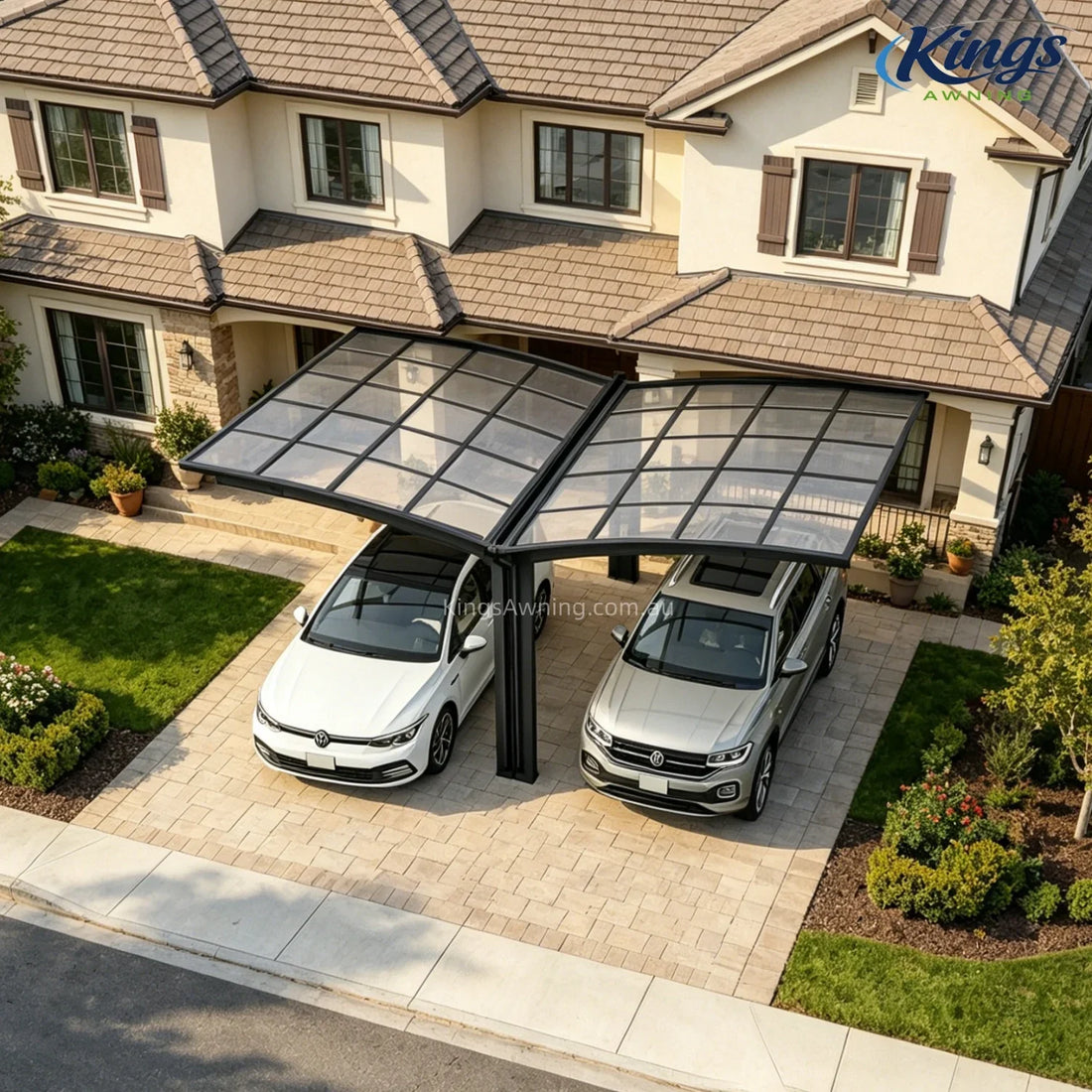

The "M-Shape" Double Carport: Managing Massive Spans

An M-Shape Double Carport joins two curved or pitched roof sections together to span a wide multi-car driveway.

· The Construction Rule: Because a Double Carport catches far more wind than a Single Carport, all load-bearing pillars must utilize the ground excavation and deep concrete pouring method to ensure stability.

3. Essential Construction & Safety Measures During Installation

· High-Quality Fasteners: Use cyclonic-rated screws with oversized EPDM washers to prevent sheeting from tearing away.

· Corrosion Management: Finish the top of the concrete footing with a tapered dome (shedding slope) above ground level to force water away from the metal posts.

· Utility Checks: Conduct a thorough underground utility scan before excavation to avoid hitting electrical or gas lines.
